Introduction & Working Principle:

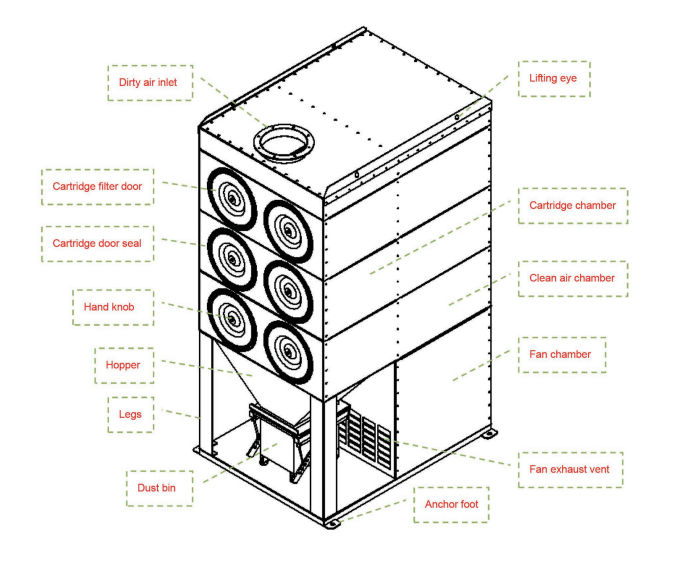

Oblique insert type air cartridge dust collector is operated under negative pressure. The dust-containing gas enters the tank through the air inlet; Under the action of the negative pressure in the folding filter cartridge, the gas enters the cylinder through the filter material outside the cylinder, and then enters the clean air chamber, and finally the clean gas is discharged from the air outlet. When the dust accumulates on the surface of the filter material, the resistance is getting larger and larger (can also be set by time), the pulse valve is opened, the compressed air is directly sprayed into the center of the filter cartridge, and the filter cartridge is sequentially pulsed to remove the dust, and the dust on the surface of the filter cartridge is purged.
Technical data:
|
Model |
Qty of
Element
(pcs) |
Filtration Area
(m2) |
Air Volume
(m3/h) |
Weight
(kg) |
Size (L*W*H)
(mm) |
|
LF- XLC 6-1 |
12 |
120 |
9600 |
1100 |
1010*2300*3600 |
|
LF-XLC 6-2 |
24 |
240 |
19200 |
1700 |
2020*2300*3600 |
|
LF-XLC 6-3 |
36 |
360 |
28800 |
2610 |
3030*2300*3600 |
|
LF-XLC 6-4 |
48 |
480 |
38400 |
3540 |
4040*2300*3600 |
|
LF-XLC 6-5 |
60 |
600 |
48000 |
4510 |
5050*2300*3600 |
|
LF-XLC 6-6 |
72 |
720 |
57600 |
5520 |
6060*2300*3600 |
|
LF-XLC 8-1 |
16 |
160 |
12800 |
1350 |
1010*2300*4080 |
|
LF-XLC 8-2 |
32 |
320 |
25600 |
1920 |
2020*2300*4080 |
|
LF-XLC 8-3 |
48 |
480 |
38400 |
2620 |
3030*2300*4080 |
|
LF-XLC 8-4 |
64 |
640 |
51200 |
4020 |
4040*2300*4080 |
|
LF-XLC 8-5 |
80 |
800 |
64000 |
5100 |
5050*2300*4080 |
|
LF-XLC 8-6 |
96 |
960 |
76800 |
6140 |
6060*2300*4080 |
|
LF-XLC 8-7 |
112 |
1120 |
89600 |
7270 |
7070*2300*4080 |
|
LF-XLC 8-8 |
128 |
1280 |
102400 |
8400 |
8080*2300*4080 |
Advantages:
1. Excellent filter material ensures dust removal efficiency of up to 99.99% for 1 micron.
2. It can be used as dust collector and dust removal system for various working conditions.
3. Simple structure.
4. Small size and saving floor space.
5. Easy maintenance.
6. Long service life.
7. The unit type combined structure makes the filter area, the treatment air volume and the external dimensions can be widely and flexibly selected, and has strong practicability.
Application:
1. The application rate in tobacco, medicine, machinery processing, food, metallurgy, chemical, hardware processing, building materials, light industry, electronics, pharmaceutical and other industries is very high.
2. Suitable for plasma, laser cutting, welding fume and other working conditions in large steel structures, shipbuilding, automobile manufacturing, metal processing and other industries.
3. Tungsten powder, molybdenum powder and other precious non-ferrous metals, recycling of pharmaceutical dust.
