CQDMC-84 pulse-jet bag dust collector
Introduction:
Pulse-jet bag dust collector is widely used to collect small and dry non-fibrous dust in metallurgy, mining, machinery, cement, building materials industry, grain industry, pharmacy, light industry, power sector and so on.
Features:
1. Advanced pulse jet dust cleaning technique: strong clear ash ability and good effect.
2. Flexible combination: we can design single-chamber, double-chamber or multi-chamber according to customers’ requirement or site conditions.(24~72: single-chamber type; 84~120: double-chamber type)
3. Large air filtration capacity.
4. High velocity of filtration.
5. Low production cost on the basis of same air filtration capacity.
6. Filter bags have long lifespan.
7. Small maintenance workload.
8. Safe and reliable operation.
9. Pulse-jet time or interval time can be adjustable.
Application:
It is widely used collect small and dry non-fibrous industrial dust in coking, fireproofing, metallurgy, building materials, chemical engineering, food, mining machinery, pesticide, electronic engineering and other industrial and mining enterprises, but it is not suitable for high humidity dusty gas.

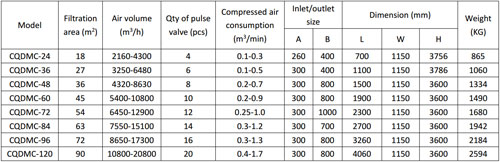

Technical parameters:
