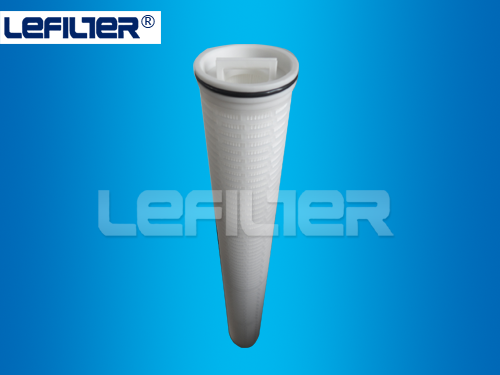

High Flow Water Filter ( 80/130mm)
Products introduction
Large diameter design of filter and increase effective filtering area can greatly reduce filter quantity and dimension of shell.
Due to the large flow, long service life can reduce the costs of investment and labor in many applications.According to outer
dimenaion,filter can be divided into two series:diameter 80mm ,-226 seal ring and 130mm diameter ,-334 seal ring.Filter material
has PP(pleated 、melt blown),hydrophilic PES microza,PTFE microza,hydrophilic PTFE microza.
Technical Specifications:
Filter size
l Outer diameter : 80mm; 130mm
l Length:10'' (251mm),about 260mm including interface
Material :
l Filter material :Pleated polypropylene (PP),PP Melt Blown,hydrophilic PES,hydrophilic PTFE
l Support layer: polypropylene
l End cover:glass fiber reinforced polypropylene
l Seal ring:ethylene propylene rubber,silicone rubber
Filter cartridge:
l PP:0.1um,0.22um ,0.45 um,1um ,1.2um ,3um ,5um ,10um ,50um
l PES:0.22um,0.45um,1.2um
l PTFE:0.22um,0.5um,1um,3um,10um
l Hydrophilic PTFE:0.5um,1um,3um,10um
l Maximum operating temperature :polypropylene melt blown :65℃;others :80℃
l Maximum pressure drop:polypropylene melt blown:65℃ 1.03Bar; others:4.08Bar 20℃;3.08Bar 65℃
l Filter replacement recommend pressure drop:20℃ 2.4Bar
Order information :
|
Filter model |
Precision |
Filter material |
Seal ring material |
|
Diameter80mm |
0.1um |
PP |
Silicone rubber
|
|
Diameter130mm |
0.22um |
PES |
Ethylene propylene rubber |
|
|
0.45um |
PTFE |
|
|
|
1um |
Hydrophilic PTFE |
|
|
|
1.2um |
|
|
|
|
3um |
|
|
|
|
5um |
|
|
|
|
10um |
|
|
|
|
50um |
|
|
