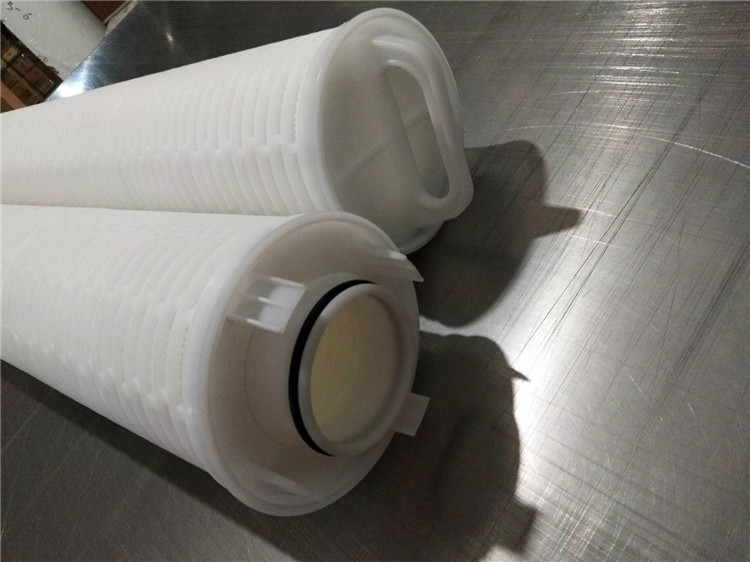

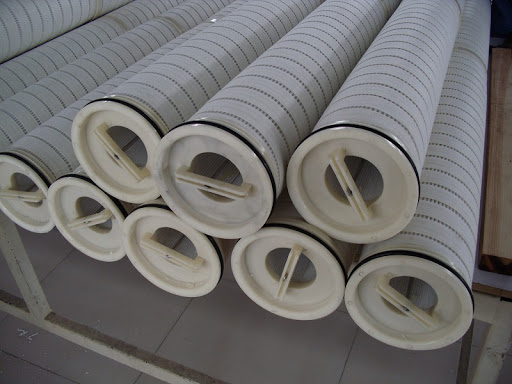

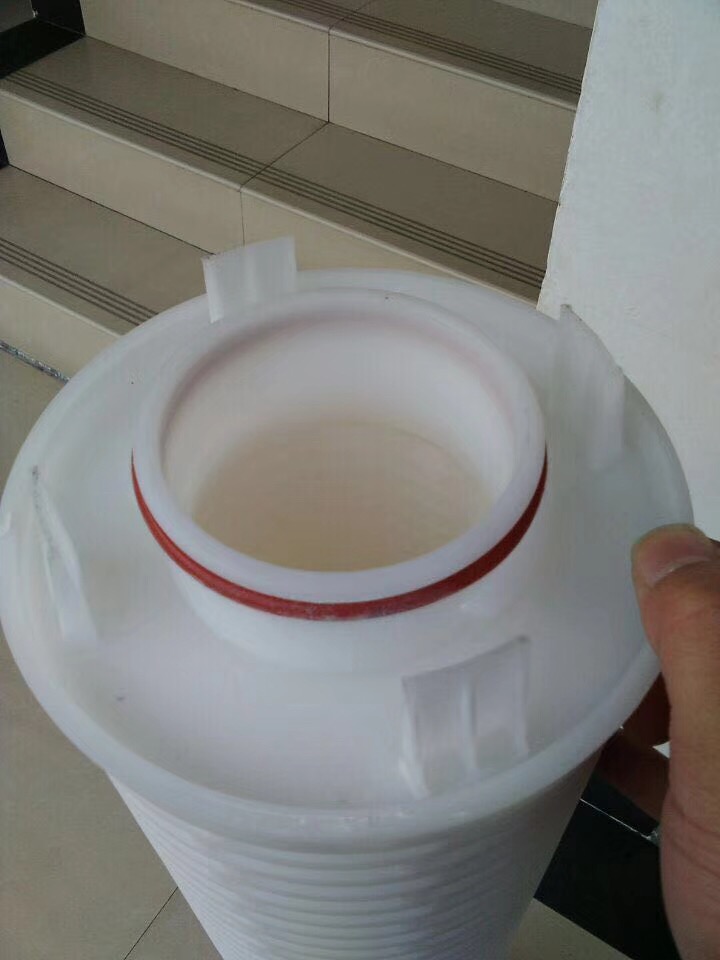

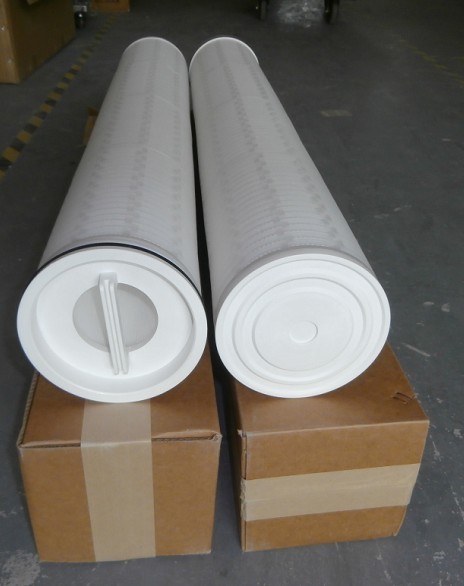

Replace OEM 3M High Flow Industrial Water Filter Cartridge HF60PP010C01
Brief introduction:

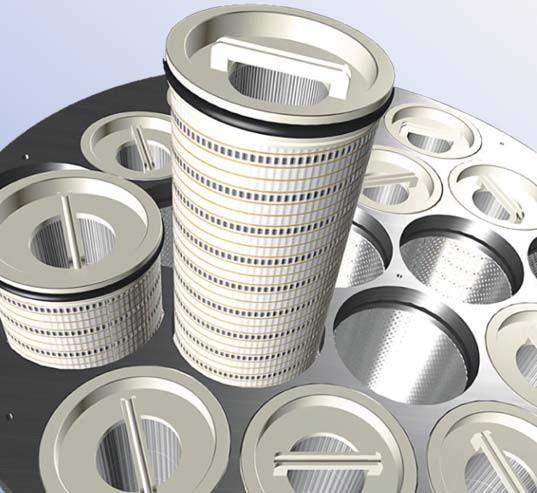

3M filter element It's designed for a variety of container which can hold 1 to 37 filter elements. It can meet a variety of flow rate demands and the hardware of which has a price competitive advantage. The large diameter of Filter design increases the filter area and can greatly reduce the amount of filter elements and the shell size.
3M High Flow Industrial Water Filter Cartridge HF60PP010C01 performance:
-
Filtering accuracy: 1μm,3μm,5μm,10μm,20μm,50μm,70μm
-
The highest operating temperature: 80ºC
-
The maximum pressure-drop: folding glass fiber:3.4Bar,20ºC
-
Recommend pressure-drop of the replacement filter: 2.4Bar ,20ºC
-
The maximum water-carrying capacity: 1300L/min
Specification
3M
|
Micron |
1μm,5μm,10μm,15μm,20μm,40μm,70μm,100μm |
|
Cartridge Length: |
20" (508mm) /40" (1016mm)/60" (1524mm) |
|
Cartridge Max.OD: |
6.5"(165mm)/6"(152mm) |
|
Filter Medium: |
Polypropylene , Cellulose , Melt Blown PP |
|
Support: |
Polypropylene |
|
End Caps: |
Glass Fiber Reinforced Polypropylene |
|
O-ring Seal options: |
EPDM,NBR,Viton |
|
Polypropylene: |
3.44bar@82°C,50psi@180°F |
|
Glass Fiber: |
3.44bar@121°C,50psi@180°F |
|
Suggestion Flow: |
20" 660LPM |
|
40" 1300LPM |
|
60" 1900LPM |
Park
|
Micron |
1μm,5μm,10μm,15μm,20μm,40μm,70μm,100μm |
|
Cartridge Length: |
40" (1016mm) |
|
Cartridge Max.OD: |
6.0"(152mm) |
|
Filter Medium: |
Polypropylene , Cellulose , Melt Blown PP |
|
Support: |
Polypropylene |
|
End Caps: |
Glass Fiber Reinforced Polypropylene |
|
O-ring Seal options: |
EPDM,NBR,Viton, |
|
Polypropylene: |
3.44bar@82°C,50psi@180°F |
|
Glass Fiber: |
3.44bar@121°C,50psi@180°F |
|
Suggestion Flow: |
40" 1300LPM |
|
OD |
6" (152mm) |
|
Length |
20"/40"/60" |
|
Micron |
0.1um~100 um |
|
Maximum operating temperature |
Pleated/melt-blown pp: 82ºC |
|
Pleated glass fiber: 121ºC |
|
Maximum operating differential pressure |
Pleated/melt-blown pp: 3.44bar@82ºC |
|
Pleated glass fiber: 3.44bar@121ºC |
|
Suggestion design flow |
40": ≤15m3/h |
|
60": ≤25m3/h |
3M Large Flow Rate Filter Elements model as below
HF40PP001A01, HF40PP001B01, HF40PP001C01, HF40PP001D01, HF40PP002A01, HF40PP002B01,
HF40PP002C01, HF40PP010B01, HF40PP025A01, HF40PP040D01, HF60PP001C01, HF60PP005B01,
HF40PP002D01, HF40PP005A01, HF40PP005B01, HF40PP005C01, HF40PP005D01, HF40PP010A01,
HF40PP010C01, HF40PP010D01, HF40PP015A01, HF40PP015B01, HF40PP015C01, HF40PP015D01,
HF40PP025B01, HF40PP025C01, HF40PP025D01, HF40PP040A01, HF40PP040B01, HF40PP040C01,
HF40PP070A01, HF40PP070B01, HF40PP070C01, HF40PP070D01, HF60PP001A01, HF60PP001B01,
HF60PP001D01, HF60PP002A01, HF60PP002B01, HF60PP002C01, HF60PP002D01, HF60PP005A01,
HF60PP005C01, HF60PP005D01, HF60PP010A01, HF60PP010B01, HF60PP010C01, HF60PP010D01,
HF60PP015A01, HF60PP025D01, HF60PP070C01, HF60PP070D01, HF60PP070A01, HF60PP070B01,
HF60PP015B01, HF60PP015C01, HF60PP015D01, HF60PP025A01, HF60PP025B01, HF60PP025C01,
HF60PP040A01, HF60PP040B01, HF60PP040C01, HF60PP040D01
Xinxiang Lifeierte Filter Corp.,Ltd specialize in filter equipment, such as filter,filter
element,testing equipment and hydraulic components product.The Company has
the superior R & D team.Company attaches great importance to technological
progress and new product development, we have established comprehensive
cooperative relations of the fraternal with Design and Research Institute, as
well as with major universities.
