Brand Name: LEFILTER
Model Number:
Nominal filtration rating:
Application:
Working temperature: 10-80℃
Replacement or not:Replacement

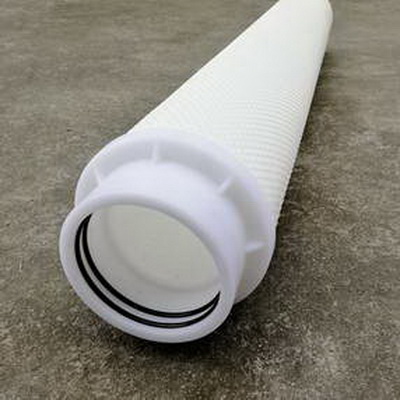

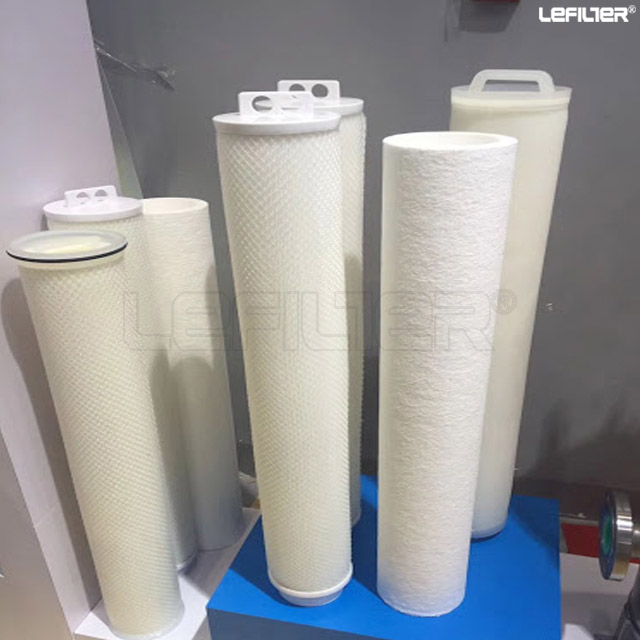

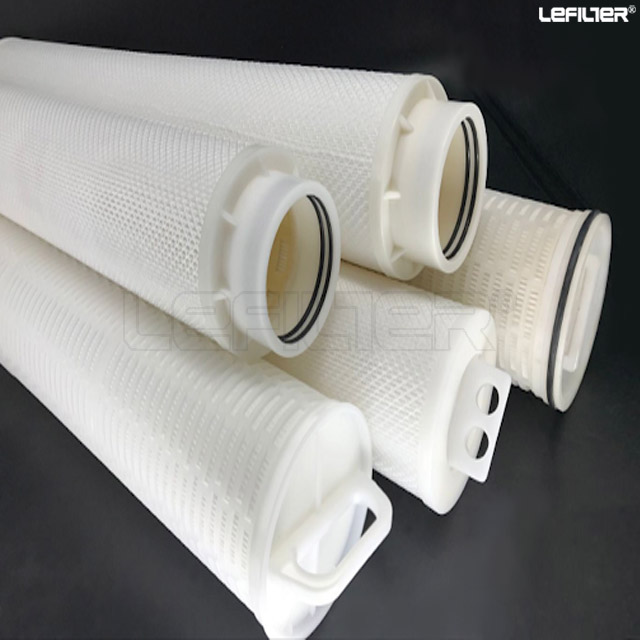

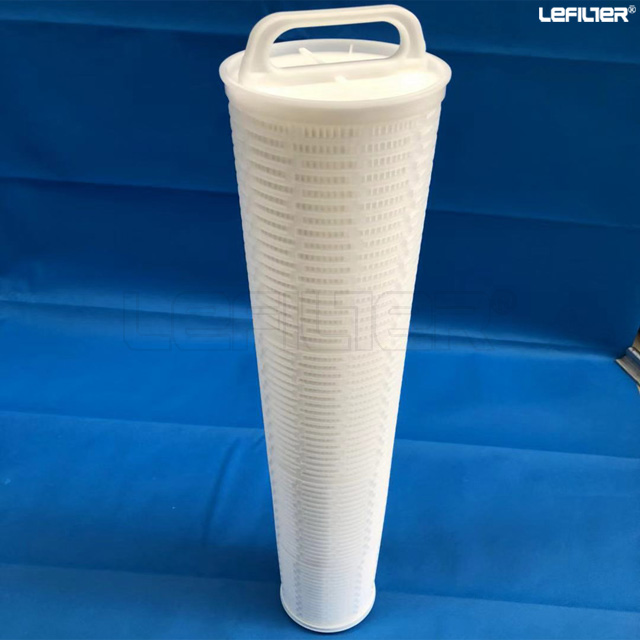

| Types | High flow Water Filter |
| Filter Media | Polypropylene, Fiberglass, Polyester, Nylon |
| Support | Polypropylene |
| End Caps | 10% glass fiber reinforced polypropylene |
| Center Core(60” length only) | Polypropylene |
| Filter Grades | 1.5,3,4,5,10,20,30,70 micron |
| O-ring Options | NBR, EPDM, Viton |
| Cartridge Length | 40”, 60” |
| Cartridge max OD | 7” |
3M
| Micron | 1μm,5μm,10μm,15μm,20μm,40μm,70μm,100μm |
| Cartridge Length: | 20" (508mm) /40" (1016mm)/60" (1524mm) |
| Cartridge Max.OD: | 6.5"(165mm)/6"(152mm) |
| Filter Medium: | Polypropylene , Cellulose , Melt Blown PP |
| Support: | Polypropylene |
| End Caps: | Glass Fiber Reinforced Polypropylene |
| O-ring Seal options: | EPDM,NBR,Viton |
| Polypropylene: | 3.44bar@82°C,50psi@180°F |
| Glass Fiber: | 3.44bar@121°C,50psi@180°F |
| Suggestion Flow: | 20" 660LPM |
| 40" 1300LPM | |
| 60" 1900LPM |

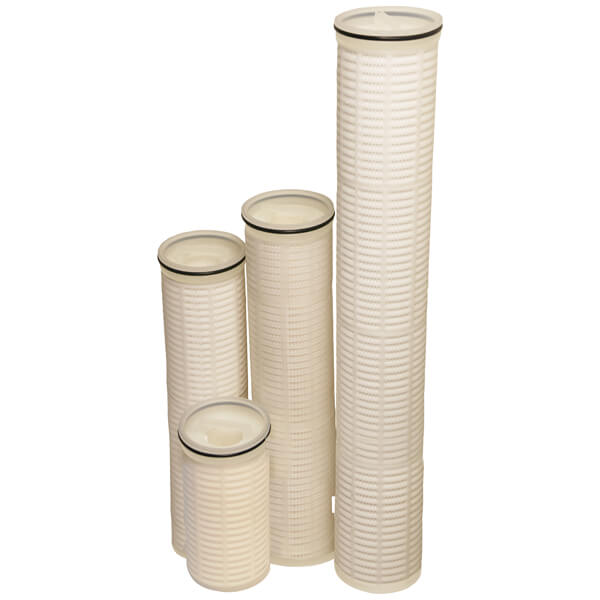

Parke
| Micron | 1μm,5μm,10μm,15μm,20μm,40μm,70μm,100μm |
| Cartridge Length: | 40" (1016mm) |
| Cartridge Max.OD: | 6.0"(152mm) |
| Filter Medium: | Polypropylene , Cellulose , Melt Blown PP |
| Support: | Polypropylene |
| End Caps: | Glass Fiber Reinforced Polypropylene |
| O-ring Seal options: | EPDM,NBR,Viton, |
| Polypropylene: | 3.44bar@82°C,50psi@180°F |
| Glass Fiber: | 3.44bar@121°C,50psi@180°F |
| Suggestion Flow: | 40" 1300LPM |

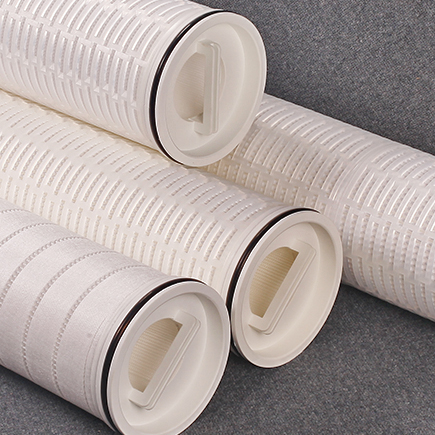

PAL
| OD | 6” (152mm) |
| Length | 20"/40"/60" |
| Micron | 0.1um~100 um |
| Maximum operating temperature | Pleated/melt-blown pp: 82℃ |
| Pleated glass fiber: 121℃ | |
| Maximum operating differential pressure | Pleated/melt-blown pp: 3.44bar@82℃ |
| Pleated glass fiber: 3.44bar@121℃ | |
| Suggestion design flow | 40": ≤15m3/h |
| 60": ≤25m3/h |
