Brand Name: LEFILTER
Model Number:
Nominal filtration rating:
Application:
Working temperature: 10-80℃
Replacement or not:Replacement
[ High filtration area, large flux]
The filter element has a large effective filtration area, low pressure drop and large flow.
[ Large dirt holding capacity and long life]
The deep fine membrane material is used to scientifically design the multi-layer gradient pore filter structure, which makes the filter element have the characteristics of high dirt concentration, thereby prolonging the service life of the filter element and saving the user cost.
[A variety of specifications can be selected]
A wide range of filtration accuracy from 0.5μm to 100μm is available to meet different filtration levels. The length specifications can be selected from 20", 40", and 60".

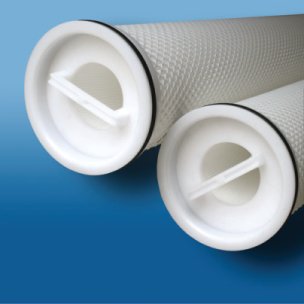

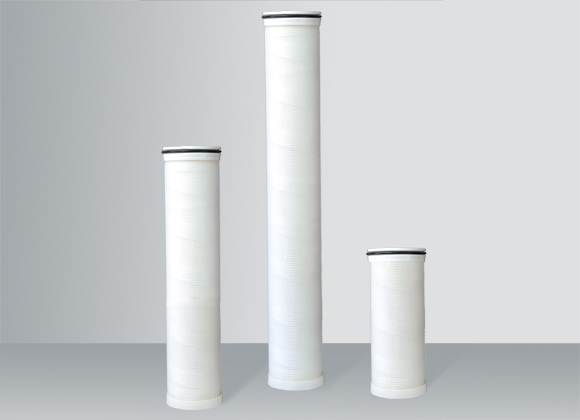

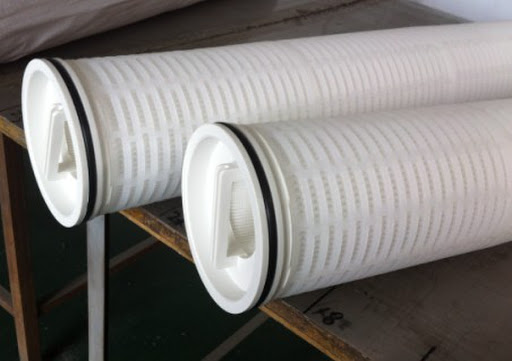

High flow industrial water filter in water filter machine Product Specifications:
Product Size
[Outer diameter]: Ø 152mm
[length]: 20 ”, 40 ”, 60 ”
Structural materials
[ Filter media ]: PP / glass fiber
[Shell/Center Rod/End Cover]: PP
[ Sealing material ]: silicone rubber, ethylene propylene rubber, fluoro rubber, Teflon fluoro rubber
Technical performance
[Maximum operating temperature]: 80 ° C
[Maximum working pressure difference]: 3 bar@ 21°C
High flow industrial water filter in water filter machine Dimensions
| Types | High flow Water Filter |
| Filter Media | Polypropylene, Fiberglass, Polyester, Nylon |
| Support | Polypropylene |
| End Caps | 10% glass fiber reinforced polypropylene |
| Center Core(60” length only) | Polypropylene |
| Filter Grades | 1.5,3,4,5,10,20,30,70 micron |
| O-ring Options | NBR, EPDM, Viton |
| Cartridge Length | 20”, 40”, 60” |
| Cartridge max OD | 6” |
3M
| Micron | 1μm,5μm,10μm,15μm,20μm,40μm,70μm,100μm |
| Cartridge Length: | 20" (508mm) /40" (1016mm)/60" (1524mm) |
| Cartridge Max.OD: | 6.5"(165mm)/6"(152mm) |
| Filter Medium: | Polypropylene , Cellulose , Melt Blown PP |
| Support: | Polypropylene |
| End Caps: | Glass Fiber Reinforced Polypropylene |
| O-ring Seal options: | EPDM,NBR,Viton |
| Polypropylene: | 3.44bar@82°C,50psi@180°F |
| Glass Fiber: | 3.44bar@121°C,50psi@180°F |
| Suggestion Flow: | 20" 660LPM |
| 40" 1300LPM | |
| 60" 1900LPM |
Parke
| Micron | 1μm,5μm,10μm,15μm,20μm,40μm,70μm,100μm |
| Cartridge Length: | 40" (1016mm) |
| Cartridge Max.OD: | 6.0"(152mm) |
| Filter Medium: | Polypropylene , Cellulose , Melt Blown PP |
| Support: | Polypropylene |
| End Caps: | Glass Fiber Reinforced Polypropylene |
| O-ring Seal options: | EPDM,NBR,Viton, |
| Polypropylene: | 3.44bar@82°C,50psi@180°F |
| Glass Fiber: | 3.44bar@121°C,50psi@180°F |
| Suggestion Flow: | 40" 1300LPM |
PAL
| OD | 6” (152mm) |
| Length | 20"/40"/60" |
| Micron | 0.1um~100 um |
| Maximum operating temperature | Pleated/melt-blown pp: 82℃ |
| Pleated glass fiber: 121℃ | |
| Maximum operating differential pressure | Pleated/melt-blown pp: 3.44bar@82℃ |
| Pleated glass fiber: 3.44bar@121℃ | |
| Suggestion design flow | 40": ≤15m3/h |
| 60": ≤25m3/h |
