Introduction:
It is designed for a variety of container which can hold 1 to 37 filter elements. It can meet a variety of flow rate demands and the hardware of which has a price competitive advantage. The large diameter of filter design increases the filtration area and can greatly reduce the amount of filter elements and the shell size.
Application fields:
-
RO cartridge filtration and seawater desalination pretreatment
-
Filtration of condensed water in power plants
-
Filtration of bulk drug, solvent and water in bio-pharmacy industry
-
Filtration of bottled water, liquid glucose, edible oil, juice, soft drink and milk
-
Painting, petrochemical industry
-
Micro-electronics, film, fiber, resin
Product features:
-
High pollution assimilative capacity can prolong the service life and reduce the cost.
-
Reduce the amount of replacement filter elements and decrease labor cost.
-
The design of seal interface can reduce the risk of bypass flows and increase the filtration efficiency.
-
Easier installment and lower labor cost.
-
Wide chemical applicability can be applied to a variety of fields.
Technical specifications:
-
Parts materials:
Filter material: pleated fiberglass, pleated deep polypropylene (PP)
Supporting/diversion layer: polypropylene (PP)
End caps: reinforced polypropylene with fiberglass
Sealing material: EPR, PTFE fluororubber
-
Performance of filter element:
Filtering accuracy: 1micron, 3micron, 5micron, 10micron, 20micron, 50micron, 70micron
Highest operating temperature: 80℃
Maximum pressure drop: 3.4bar, 20℃
Recommended pressure drop for filter replacement: 2.4bar, 20℃
The maximum water-carrying capacity: 1300L/min

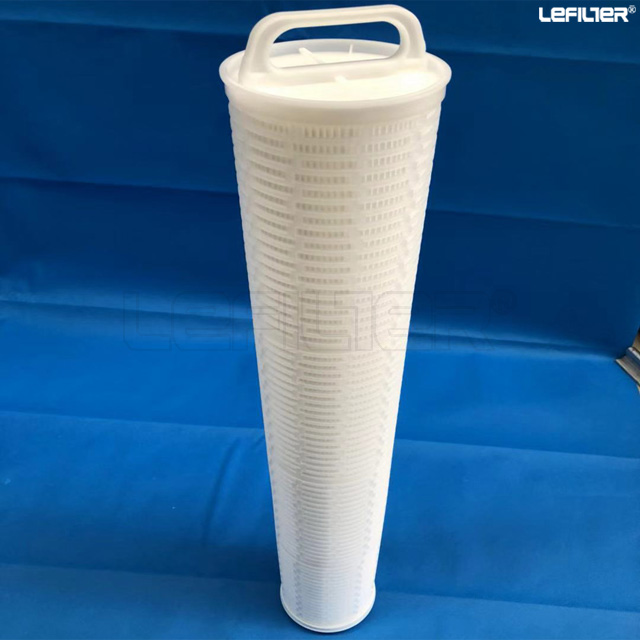

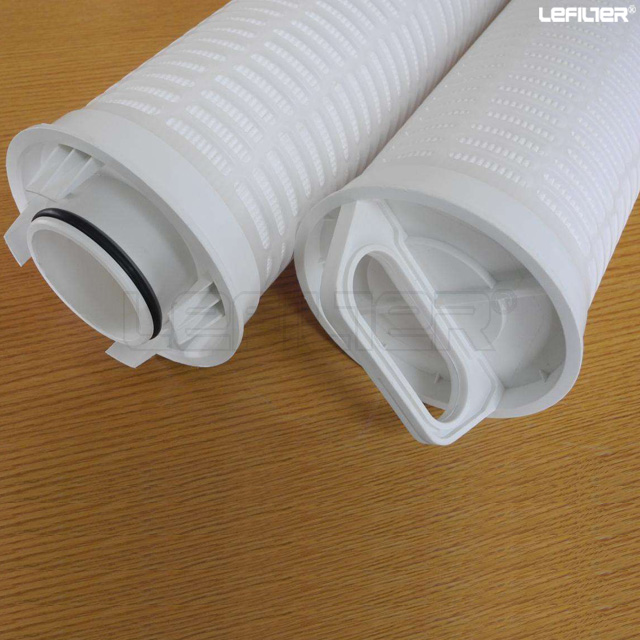

Product show:
