Big Flow Rate Water Filter Cartridges RF050-40-NPX for RO filtration system
Introduction:
LEFILTER filter provides a filtering scheme which can effectively replace deep and other inner diameter 2 1/2’’ forms in heavy-flowing situations, such as anti-osmosis pre-filtering and similar efficiency-catering occasions. Each park series filter can process flow of 1300 liter/minute, which significantly reduces the filter quantity and size. The capacity of a Parker filter is equivalent to 10 filters with diameter 2 1/2’’, length 40’’. Positively charges type O sealing ring and a build-in handle make the filter installation fast, safe and convenient.
Application fields:
-
RO cartridge filtration and seawater desalination pretreatment
-
Filtration of condensed water in power plants
-
Filtration of bulk drug, solvent and water in bio-pharmacy industry
-
Filtration of bottled water, liquid glucose, edible oil, juice, soft drink and milk
-
Painting, petrochemical industry
-
Micro-electronics, film, fiber, resin
Product features:
-
Great capacity of impurity and long life.
-
Less replacement saves labor cost.
-
Sealed interface reduces the danger of bypass flow and improve the efficiency of filtering.
-
Easier installment and lower labor cost.
-
They are applied in various fields with their extensive chemical applications.
Technical specifications:
1.Parts materials:
Filter material: pleated fiberglass, pleated deep polypropylene (PP)
Supporting/diversion layer: polypropylene (PP)
End caps: reinforced polypropylene with fiberglass
Sealing material: EPR, BNR, silicon rubber, fluorine rubber
2.Performance of filter element:
Filtering accuracy: 1micron, 4.5micron, 6micron, 10micron, 20micron, 40micron, 70micron, 100micron
Highest operating temperature: 82℃
Maximum pressure drop: 3.4bar, 20℃
Recommended maximum filtering water flow: 1300L/min

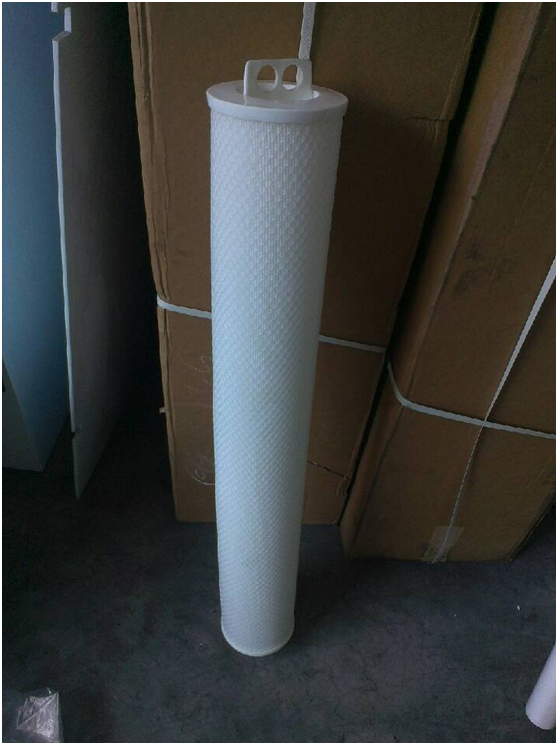

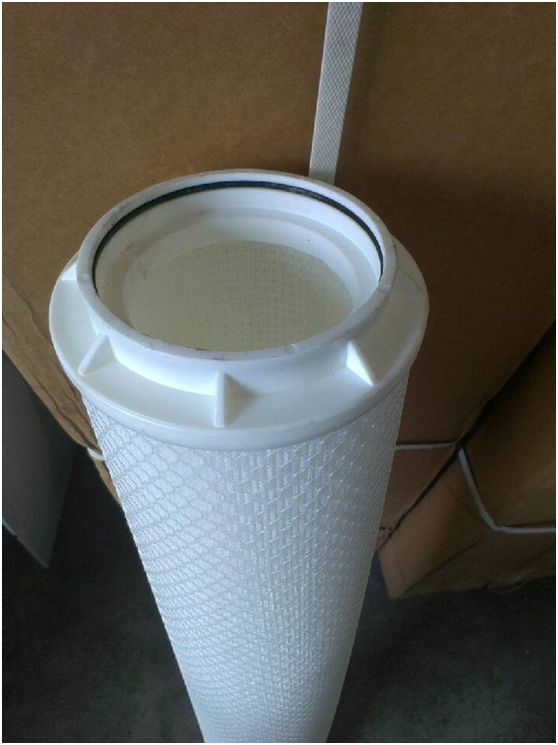

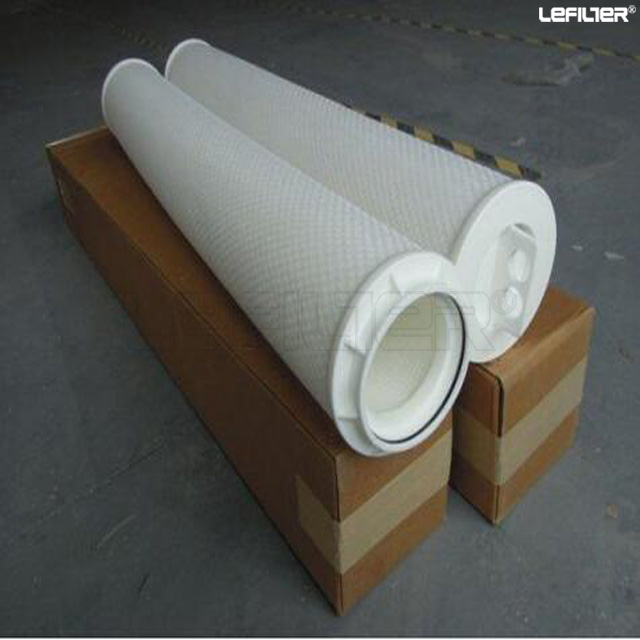

Product show:
