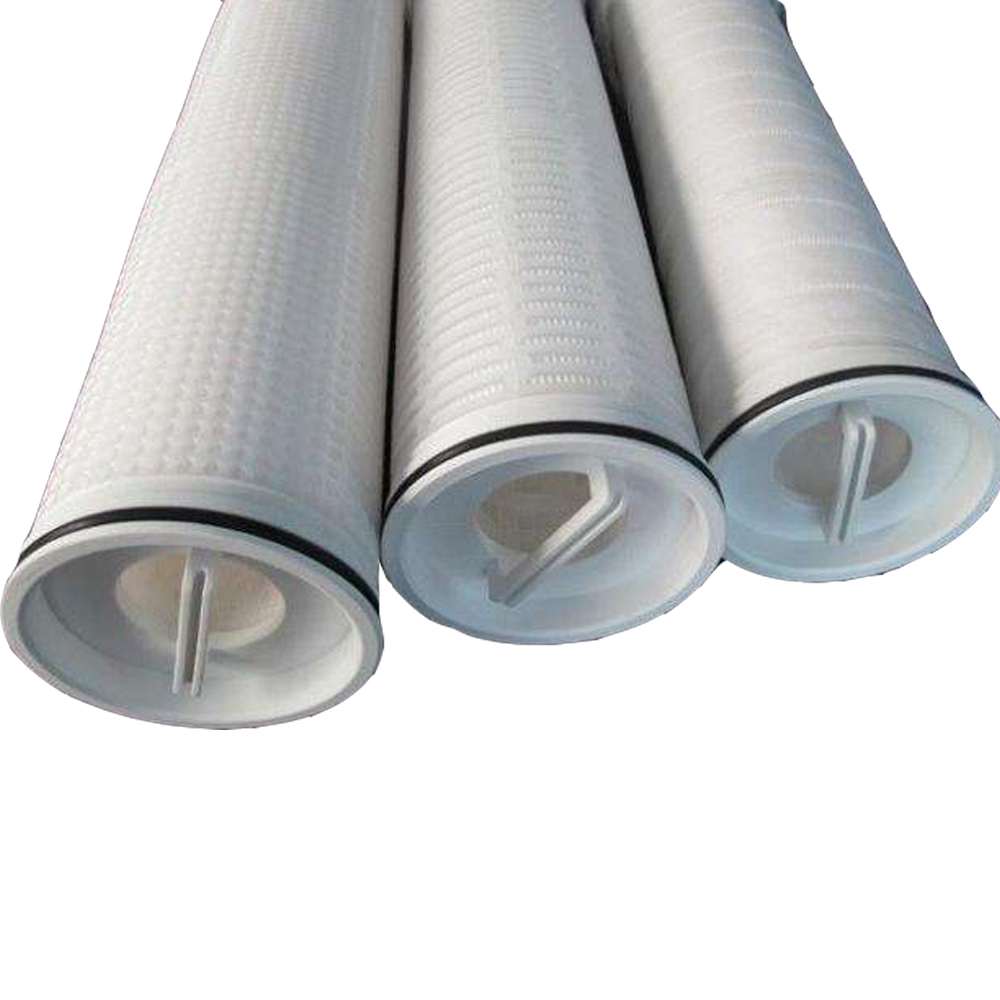

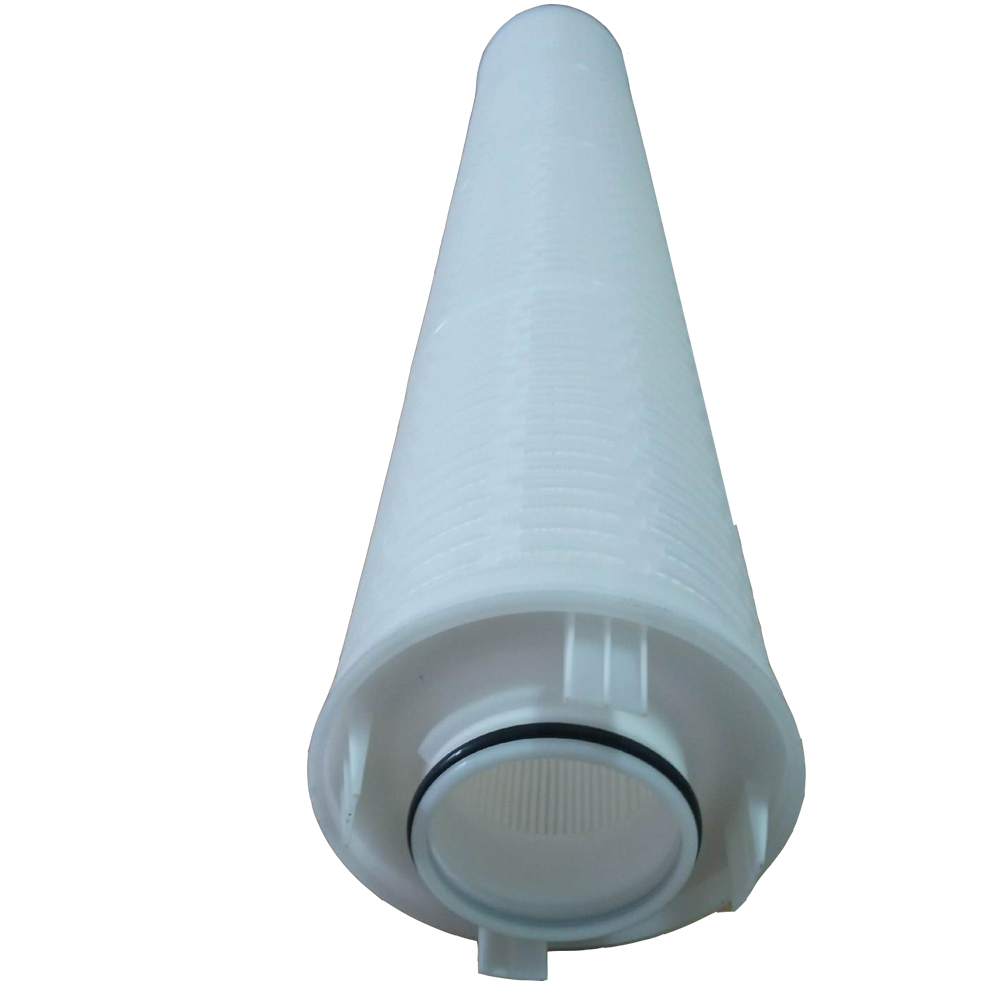

    high flow water filter in water filter plant

    Read 0 Reviews23 Q&As Write a Review
    Product Description The high-flow folding filter uses deep fine polypropylene or glass fiber membrane as the filter material. It has a large diameter of 6 inches / 152mm, no central rod, one-way opening, and specially designed inside -to- o

    PARAMETER

    Brand Name: Lefilter
    Model Number:
    Nominal filtration rating:
    Application:
    Working temperature: 82
    Replacement or not:Replacement

    high flow water filter in water filter plant introduction
    high flow water filter in water filter plantis put into     water filter housing, uses deep fine polypropylene or glass fiber membrane as the filter material. It has a large diameter of 6 inches / 152mm, no central rod, one-way opening, and specially designed inside-to-outside filter direction to ensure all pollution. The particles are trapped inside the filter element. The ultra-large flow design significantly reduces the amount of filter cartridges and filter housing , greatly reducing equipment input costs and labor costs.



    high flow water filter in water filter plant  Features:

    [ High filtration area, large flux]

    The filter element has a large effective filtration area, low pressure drop and large flow.

    [ Large dirt holding capacity and long life]

    The deep fine membrane material is used to scientifically design the multi-layer gradient pore filter structure, which makes the filter element have the characteristics of high dirt concentration, thereby prolonging the service life of the filter element and saving the user cost.

    [A variety of specifications can be selected]

    A wide range of filtration accuracy from 0.5μm to 100μm is available to meet different filtration levels. The length specifications can be selected from 20", 40", and 60".



    high flow water filter in water filter plant Specifications:

    Product Size

    [Outer diameter]: Ø 152mm

    [length]: 20 ”, 40 ”, 60 ”

    Structural materials

    [ Filter media ]: PP / glass fiber

    [Shell/Center Rod/End Cover]: PP

    [ Sealing material ]: silicone rubber, ethylene propylene rubber, fluoro rubber, Teflon fluoro rubber

    Technical performance

    [Maximum operating temperature]: 80 ° C

    [Maximum working pressure difference]: 3 bar@ 21°C



    high flow water filter in water filter plant Dimensions


    Flow rate chart
