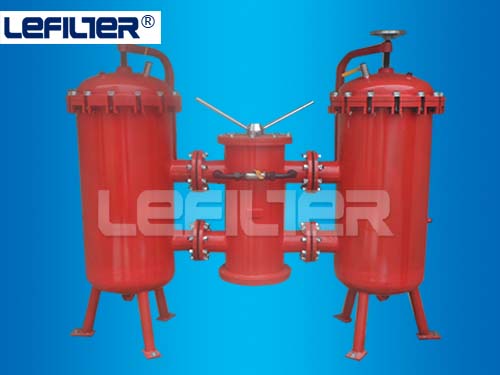

SRLF-60x10F-P duplex return filter

Read 0 Reviews23 Q&As Write a Review
1.For hydraulic oil 2.Professional manufacturer 3.Good quality 4.Competitive price

PARAMETER

Brand Name:
Model Number:
Nominal filtration rating:
Application:
Working temperature:
Replacement or not:Replacement

SRLF-60x10F-P duplex return filter



INTRODUCTION

The SRLF series filter is composed of two single bowl filters and a 2-position 6-way directional valve,it is simple in structure and easy to use.
There is by-pass valve and contamination indicator in it,for protecting the hydraulic system safety.
The feature of this filter allows continuous operation even during replacing element which is clogged by contaminant.Turn the directional valve,
the other filter will be working in the hydraulic system,the clogged element should be changed in that time.
This series filter is widely used in the hydraulic system of heavy duty,mining and metallurgical machinery.


TECHNICAL DATA

Model Flow
(L/min)
Filtr
(um)
Dia
(mm)
Press
(Mpa)
Pressure Loss(Mpa) Indicator
Power
Weight Model of element
Initial Max
SRLF-60X*P 60

1
3
5
10
20
30
25




 1.6





≤0.08






0.35



24v/48w
220v/50w
13.2 SFX-60X*
SRLF-110X*P 110 25 13.7 SFX-110X*
SRLF-160X*P 160 40 29.5 SFX-160X*
SRLF-240X*P 240 40 32.0 SFX-240X*
SRLF-330X*P 330 50 52.5 SFX-330X*
SRLF-500X*P 500 50 58.5 SFX-500X*
SRLF-660X*P 660 80 77.0 SFX-660X*
SRLF-850X*P 850 80 81.0 SFX-850X*
SRLF-950X*P 950 100 112 SFX-950X*
SRLF-1300X*P 1300 100 121 SFX-1300X*

NOTE:* is filtration,if the working medium is water-glycol,and the filter equipped with an indicator ,the model of this filter is SRLF.BH-*X*P,
the model of element is SFX.BH-*X*.
