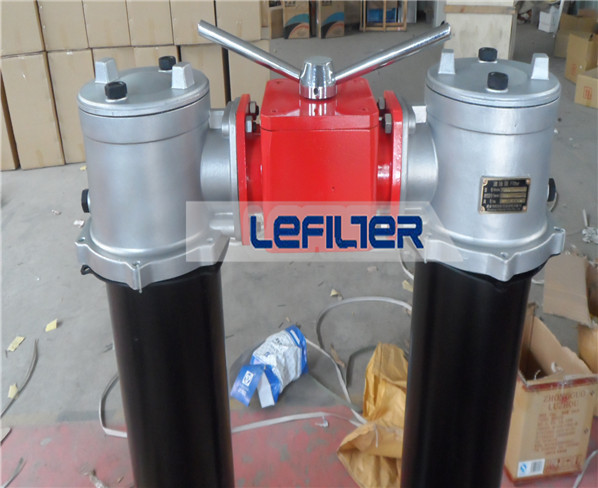

    SRFB-25x10-FY/C duplex tank mounted return filter

    Read 0 Reviews23 Q&As Write a Review
    1.For hydraulic oil 2.Professional manufacturer 3.Good quality 4.Competitive price

    PARAMETER

    Brand Name:
    Model Number:
    Nominal filtration rating:
    Application:
    Working temperature:
    Replacement or not:Replacement

    SRFB-25x10-FY/C duplex tank mounted return filter



    The SRFB series filter is composed of two single bowl filters and 2-position 3-way directional valve,it is simple in structure and easy to use.It is mounted on top,at the side or in the bottom of tank.There is by-pass valve and contamination indicator in it,for protecting the hydraulic system safety.
    The feature of this filter allows continuous operation even during replacing element which is clogged by contaminant.Turn the directional valve,the other filter will be working in the hydraulic system,the clogged element should be changed in that time.
    This series filter is widely used in the hydraulic system of heavy duty,mining and metallurgical machinery.

    TECHNICAL DATA

    Model Flow
    (L/min)    		 Filtr
    (um)    		 Press
    (Mpa)    		 Pressure loss
    (Mpa)    		 Indicator Weight Connecting Model of element
    Initial Max V A
    SRFB-25X*F-C/Y 25

    1
    3
    5
    10
    20
    30



    ≤1.6



    ≤0.075



    0.35

    12
    24
    36
    220

    2.5
    2
    1.5
    0.25




    Flange    		 SFBX-25X*
    SRFB-40X*F-C/Y 40   SFBX-40X*
    SRFB-63X*F-C/Y 63   SFBX-63X*
    SRFB-100X*F-C/Y 100   SFBX-100X*
    SRFB-160X*F-C/Y 160   SFBX-160X*
    SRFB-250X*F-C/Y 250   SFBX-250X*
    SRFB-400X*F-C/Y 400   SFBX-400X*
    SRFB-630X*F-C/Y 630   SFBX-630X*
    SRFB-800X*F-C/Y 800   SFBX-800X*
    SRFB-1000X*F-C/Y 1000   SFBX-1000x*
    SRFB-1300X*F-C/Y 1300   SFBX-1300X*

    NOTE:*is filtration,if used water-glycol,and the filter equipped with CYB-I indicator,the mode of this filter is SRFB.BH-63X*Y,model of element is SRFX.BH-63X*.

    Certificates:
