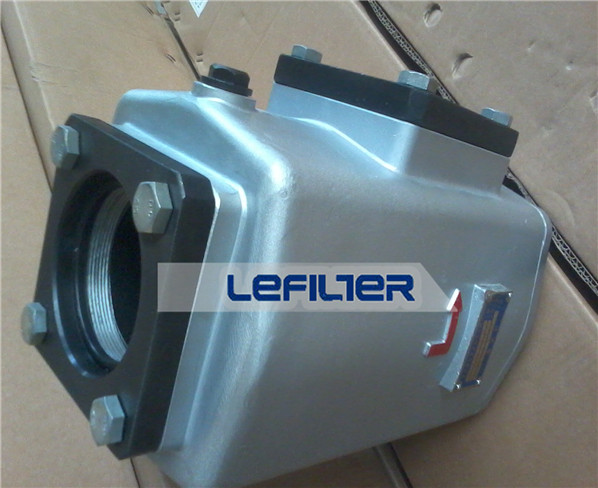

ISV20-40x80C Suction oil line filter
1.INTRODUTION
The ISV series line suction filter is composed of aluminum alloy bowl, element, by-pass valve and visual indicia. It is light in weight and strong. This series filter has feature as follows:
a) Visual indicator: when filter element is clogged by contaminants, the red signal of visual indicator will be risen slowly, the element should be changed or cleaned when the red signal rises to the top-position. Push the restores to allow the red signal ring downfall after changing or cleaning element.
b) Electrical indicator: when filter element is clogged by contaminants,and the vacuum pressure reaches -0.018Mpa in filter outlet, the electrical indicator will act and indicate that the element should be changed or cleaned in that time.
c) By-pass valve: when the vacuum pressure reaches -0.02Mpa, the by-pass valve will automatically open to protect the pump safety.
2.TECHNICAL DATA
|
MODEL |
Flow Rate(L/min) |
Filtr(um) |
Dia(mm) |
Intial(Mpa) |
Indicator |
Weight
(KG) |
Model of Element |
|
(V) |
(A) |
|
ISV20-40X* |
40 |
80
100
180 |
20 |
<0.01 |
12
24
36
220 |
2.5
2
1.5
0.25 |
5 |
IX-40X* |
|
ISV25-63X* |
63 |
25 |
IX-63X* |
|
ISV32-100X* |
100 |
32 |
6 |
IX-100X* |
|
ISV40-160X* |
160 |
40 |
IX-160X* |
|
ISV50-250X* |
250 |
50 |
8.5 |
IX-250X* |
|
ISV65-400X* |
400 |
65 |
11 |
IX-400X* |
|
ISV80-630X* |
630 |
80 |
IX-630X* |
|
ISV90-800X* |
800 |
90 |
20 |
IX-800X* |
|
ISV100-1000X* |
1000 |
100 |
IX-1000X* |
Note:* is filtration.If the medium is water-glycol.flow rate is 160L/min,filtration accuracy is 80 um,with ZS-I indicator,the model of this filter is ISV.BH-16080C,the model is IX.BH-160X80.
