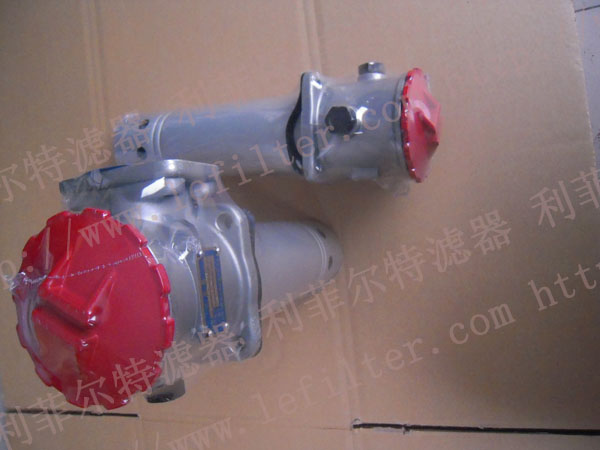

TF/TFX-400X 80/100/180L-C/Y suction oil filter element
1.TF suction filter(element)INTRODUTION
The TFseries filters can be installed on the top, at the side or in the bottom of the tank.There is a check
valve inside the filter. During maintenance. When filter element is withdrawn for washing, the check valve
will chose automatically to stop oil folwing out from the tank.
A vacuum indicator in the filter gives signals when the pressure drop across the element reaches 0.018Mpa
showing that the filter cleanes. If no maintenance is done, as the pressure drop rises to 0.02Mpa, the by-pass
vavle will open to allow oil flowing into pump.
2.TECHNICAL DATA
|
Model |
Flow(L/min) |
Filtr(um) |
Dia(mm) |
InitialΔp(Mpa) |
Indicator |
Connection |
Weight |
Model of element |
|
|
V |
A |
||||||||
|
TF-25X*L-C/Y |
25 |
80
100
180 |
15 |
<0.01 |
12
24
36
220 |
2.5
2
1.5
0.25 |
THREAD |
0.4 |
TFX-25X* |
|
TF-40X*L-C/Y |
40 |
20 |
0.45 |
TFX-40X* |
|||||
|
TF-63X*L-C/Y |
63 |
25 |
0.82 |
TFX-63X* |
|||||
|
TF-100X*L-C/Y |
100 |
32 |
0.87 |
TFX-100X* |
|||||
|
TF-160X*L-C/Y |
160 |
40 |
1.75 |
TFX-160X* |
|||||
|
TF-250X*F-C/Y |
250 |
50 |
FLANGE |
2.6 |
TFX-250X* |
||||
|
TF-400X*F-C/Y |
400 |
65 |
4.3 |
TFX-400X* |
|||||
|
TF-630X*F-C/Y |
630 |
90 |
6.2 |
TFX-630X* |
|||||
|
TF-800X*F-C/Y |
800 |
90 |
6.9 |
TFX-800X* |
|||||
|
TF-1000X*F-C/Y |
1000 |
90 |
8 |
TFX-1000X* |
|||||
|
TF-1300X*F-C/Y |
1300 |
90 |
10.4 |
TFX-1300X* |
|||||
Note:* is filtration accuracy,If the medium is water-glycol,flow rate is 160L/min,filtration accuracy is 80 um,with ZS-I Indicator,the model of this filter IS TF.BH-160X80L-C,The model of element is TFX.BH-160X80.
