Brand Name:
Model Number:
Nominal filtration rating:
Application:
Working temperature:
Replacement or not:Replacement

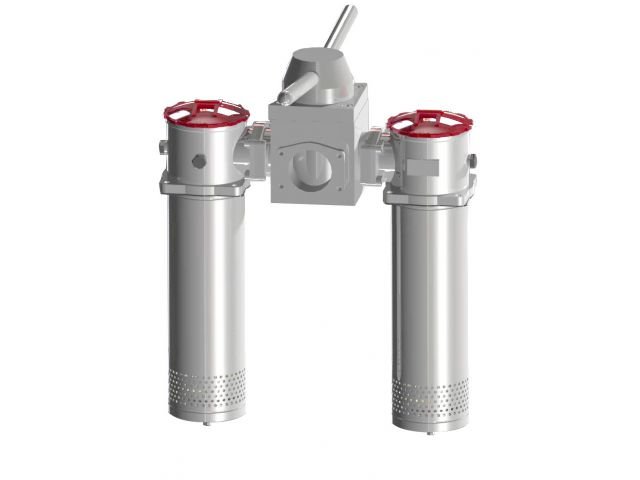

fiberglass media duplex hydraulic oil filter SRFA-40X5L-C/Y
The SRFA series filter is composed of two single bowl filters and a-position 3- way directional valve.It is simple in structure and easy to use.
It is mounted on tank top,There is by-pass valve and contamination indicator in it ,for protecting the hydraulic system safety.
The feature of this filter allows continuos operation even during replacing element which is clogged by contaminant. Turn the directional valve,
the other filter will be working in the hydraulic system, the clogged element should be changed in that time.
This series filter is widely used in the hydraulic systems of heavy duty,mining and metallurgical machinery.
Technical data
NOTE:* is filtration accuracy,if the medium is water-glycol,and the filter equipped with indicator,the mode of this filter is SRFA.
BH-63X*L-Y,the model of element is SFAX.BH-63X*
Certificates:
