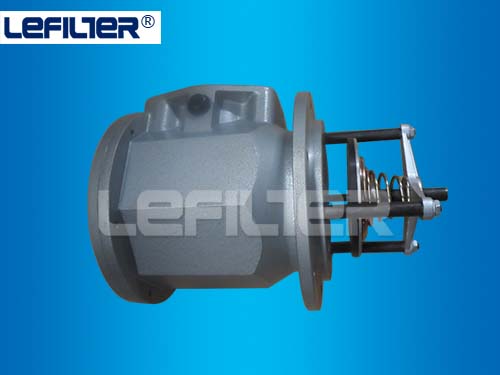

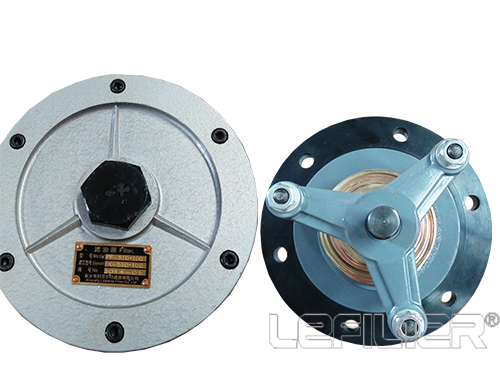

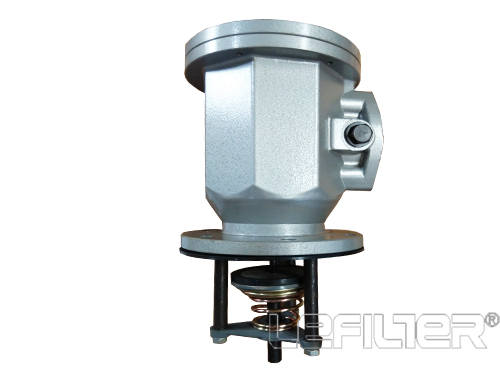

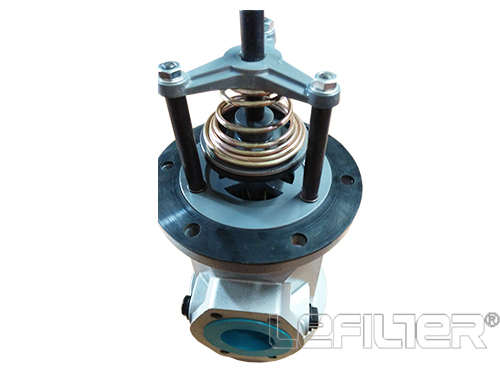

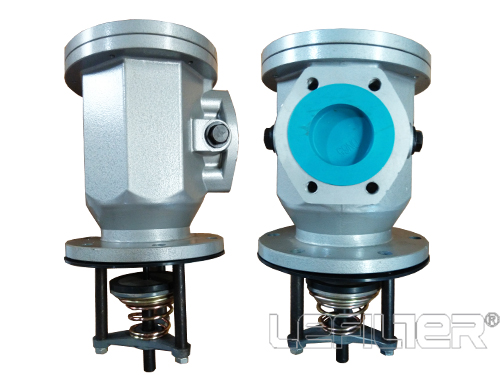

Check Vavle Magnetic Suction Filter CFF-510*100

Read 0 Reviews23 Q&As Write a Review

WITH CHECK VALVE MAGNETIC SUCTION FILTER SERIES INTRODUTION The series filter can be installed on the top or at the side of the tank. There is check vavle inside the filter. During maintenance, filter element is withdrawn for washing, the c

PARAMETER

Brand Name: Lefilter
Model Number:
Nominal filtration rating:
Application:
Working temperature: 5-80℃
Replacement or not:Replacement

Product Description

CHECK VALVE MAGNETIC SUCTION FILTER

INTRODUTION

The CFF series suction filter can be installed on the top or at the side of the tank. There is check vavle inside the filter.
During maintenance, filter element is withdrawn for washing, the check vavle will closeautomatically to
stop oil flowing out from the tank.

A vacuum indicator in the filter will signal when the pressure drop across the element reaches 0.018Mpa
showing that the filter should be cleanes. If no maintenance is done, as the pressure drop rises to 0.02Mpa,
the by-pass vavle in this filter will open to allow oil flowing into pump directly.

Technical Data:

CFFA With Check Vavle Magnetic Suction Filter Series 80~180μ	CFF With Check Vavle Magnetic Suction Filter Series 80~180μ	ZL12-122 With Check Vavle Magnetic Suction Filter Series
CFFA-250×	CFF-510×	ZL12-122×
CFFA-510×	CFF-515×	ZL12B-122×
CFFA-515×	CFF-520×	ZL12C-122×
CFFA-520×	CFFFilter Element 80~180μ	ZL12-122 Filter Element
CFFA Filter Element 80~180μ	FX-510×	ZL12X-122×
CFFAX-250×	FX-515×	ZL12BX-122×
CFFAX-510×	FX-520
CFFAX-515
CFFAX-520×

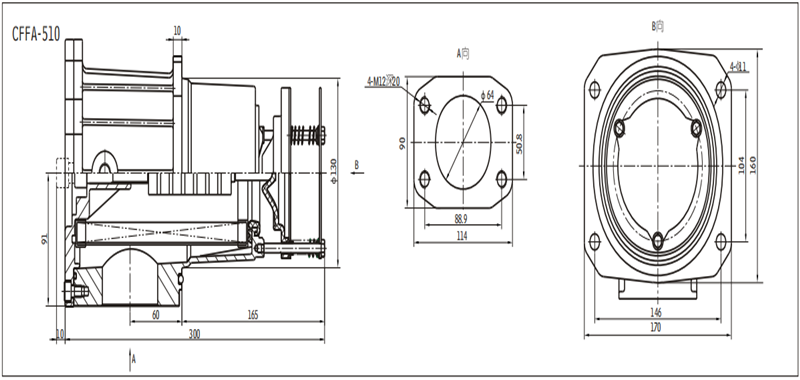

Sizes:
