    HC9600FKZ4H pall pleated oil filter

    Read 0 Reviews23 Q&As Write a Review
    Equivalent is manufactured by Lefilter factory.

    PARAMETER

    Brand Name:
    Model Number:
    Nominal filtration rating:
    Application:
    Working temperature:
    Replacement or not:Replacement

    Lefilter replacement HC8900 series filter element,for a variety of liquid medium in various of occasions,it can make the solid particles superfine filtration.
    Usually,it widely used in hydraulic and lubricant system.Lefilter adopts HV and Lydall fiberglass material to manufacture the filters,which can replace the original filters.


    Data sheet:

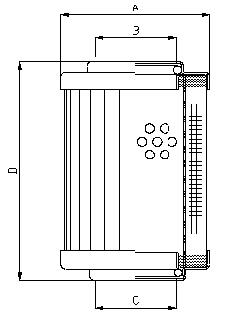

    Data items Data sheet details Size details
     Media Fiberglas A:96.3mm
    Micron 1-25micron 13H/13Z D:328mm
    Collapse 20-210 Bar 16H/16Z D:429mm
    Seal type NBR/Viton 26H/26Z D:653mm
    By-pass No 39H/39Z D:982mm
    Fluid comp Mineral oil, etc 8H/8Z D:206mm

    Filter rating details: FKN: 6micron fiberglass media
    FDP: 3micron fiberglass media FKP: 3micron fiberglass media
    FDS: 10micron fiberglass media FKS: 10micron fiberglass media
    FDT: 25micron fiberglass media FKT: 25micron fiberglass media
    FKZ: 1micron fiberglass media FUP: 3micron fiberglass media
    FUN: 6micron fiberglass media FUS: 10micron fiberglass media
    FUT: 25micron fiberglass media  FDN: 6micron fiberglass media
