Brand Name:
Model Number:
Nominal filtration rating:
Application:
Working temperature:
Replacement or not:Replacement
HC9100 series filter element,for a variety of liquid medium in various of occasions,it can make the solid particles superfine filtration.
Usually,it widely used in hydraulic and lubricant system.Lefilter adopts HV and Lydall fiberglass material to manufacture the filters,which can replace the original filters.
1. Material:HV fiberglass, Ahistrom filter paper, stainless steel wire mesh
2. Filter accuracy:1, 3, 6, 12, 25 …um
3. Pressure:1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa
4. Application field:hydraulic system, lubrication system
5. O-Ring:NBR, fluororubber
Data sheet:

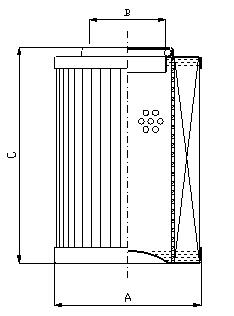

| Data items | Data sheet details | Size details | |
| Media | Fiberglas | A:70mm | |
| Micron | 1-25micron | 4H/4Z | D:118mm |
| Collapse | 20-210 Bar | 8H/8Z | D:210mm |
| Seal type | NBR/Viton | 13H/13Z | D:330mm |
| By-pass | No | ||
| Fluid | Mineral oil, etc | ||
