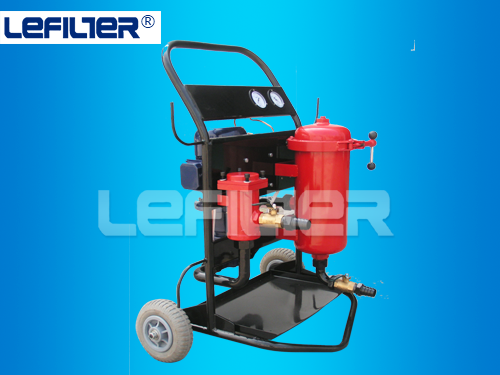

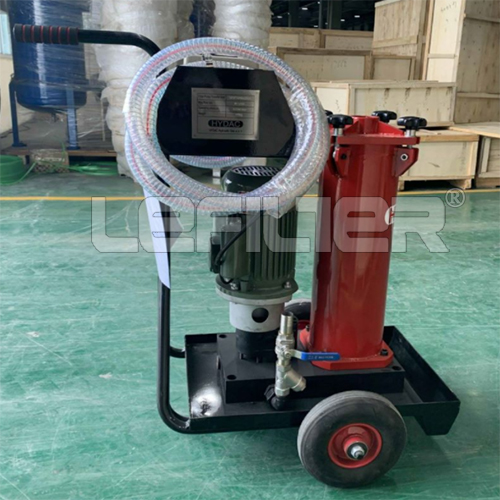

LYC-A series movable oil filter vehicle

LYC-A movable oil filter vehicle:


Introduction:
This oil filter vehicle contains a motor-driven special gear pump which has the traits of low noise, strong self-priming and smooth operation. High pressure pipeline has overflow protection device which can effectively protect the safety of the hydraulic system. It adopts thermal relay to prevent motor from damages caused by overload. The coarse filter in suction orifice can protect oil pump and increase filter service life. Fine filter can achieve the different precision requirements according to customer's requirement. The shell of oil filter vehicle adopts quick opening structure which makes the cover quickly opened so that the filter element can be replaced without any tools. The panel is equipped with pressure gauge which continuously indicates the state of operation of system and the pollution of filter element when the vehicle is working.

Product features:
1. Medium: general hydraulic oil, water/glycol, phosphate hydraulic fluid
2. Medium viscosity: ≤160 cSt
3. Flux: 32-150 L/min
4. Pressure: 0.6Mpa
5. Filter accuracy: 3-40um

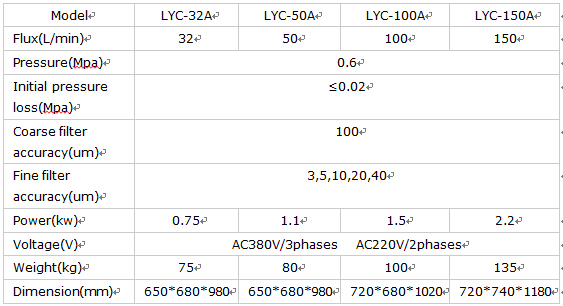

Technical parameters:


Our certificate:
