INTERNORMEN Hydraulic Oil Filter 03.2.140.100G.16.E.V
Product introduction:
The INTERNORMEN filter element is widely used in hydraulic and lubricant system to remove the impurities in the oil and keep the systems operate regularly.
For different micron,we have coarse filters,normal filters,ultrafilters and fine filters,which can make sure your choice correct.
Technical parameter
1.Working medium: general hydraulic oil, phosphate grease hydraulic oil, emulsion, water glycol
2.Material: glass fiber filter paper - BN stainless steel woven mesh - W wood pulp filter paper - P stainless steel sintered mesh - V
3.Filtration accuracy: 1 μ ~ 100 μ
4.Working pressure: 21bar-210bar
5.Working temperature: - 30 ℃～ + 110 ℃
6.Sealing material: fluorine rubber ring, butyl rubber
7.Structural strength: 1.0MPa, 2.0MPa, 16.0mpa, 21.0mpa
Application area
1. Metallurgy: used for filtration of hydraulic system of rolling mill and continuous caster and filtration of various lubricating equipment.
2. Petrochemicals: separation and recovery of products and intermediate products in the process of refining and chemical production, purification of liquid,
magnetic tape, optical disk and photographic film in the manufacturing, degranulation and filtration of oilfield injection well water and natural gas.
3. Textile: purification and uniform filtration of polyester melt in drawing process, protective filtration of air compressor, oil and water removal of compressed gas.

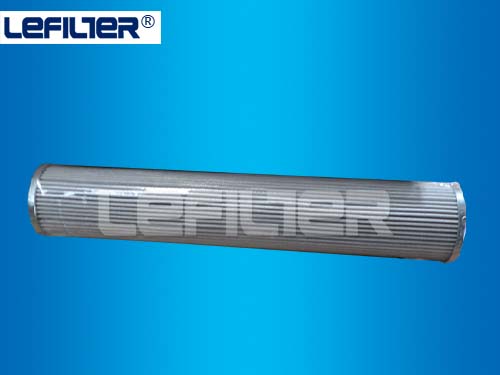

Picture show:
Product features:
1. Material: fiberglass
2. Life span: 8-10months
3. Pressure: 1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa
4. Application field: hydraulic system, lubrication system
5. O-Ring: NBR, fluororubber
Typical model code:
|
1. |
01.E.30.3VG.HR.E.P |
14. |
01.E.240.50G.HR.E.P |
|
2. |
01.E.30.6VG.30.E.P |
15. |
01.E.240.25VG.10.E.P |
|
3. |
01.E.30.25G.30.E.P |
16. |
01.E.360.6VG.HR.E.P |
|
4. |
01,E.60.3VG.HR.E.P |
17. |
01.E.360.12VG.10.E.P |
|
5. |
01.E.60.12VG.30.E.P |
18. |
01.E.450.6VG.HR.E.P |
|
6. |
01.E.120.25VG.10.E.P |
19. |
01.E.450.80G.10.E.P |
|
7. |
01.E.90.3VG.HR.E.P |
20. |
01.E.660.12VG.10.E.P |
|
8. |
01.E.90.25G.HR.E.P |
21. |
01.E.660.6VG.HR.E.P |
|
9. |
01.E.150.3VG.10.E.P |
22. |
01.E.900.3VG.HR.E.P |
|
10. |
01.E.150.25G.10.E.P |
23. |
01.E.900.25VG.10.E.P |
|
11. |
01.E.170.6VG.HR.E.P |
24. |
01E.1200.25VG.16.S.P |
|
12. |
01.E.170.25G.10.E.P |
25. |
01NL.250.10VG.30EP |
|
13. |
01.E.240.6VG.HR.E.P |
26. |
01,NL.630.25VG.10.E.P |
Quality assurance:
ISO 2941------Collapse & Burst Resistant
ISO 2942------Fabrication & Integrity Test
ISO 2943------Material Compatibility with Fluids
ISO 3724------Flow Fatigue Characteristics
ISO 3968------Pressure Drop vs. Flow Rate
ISO 16889------Multi-pass Performance Testing
Our certificates:
