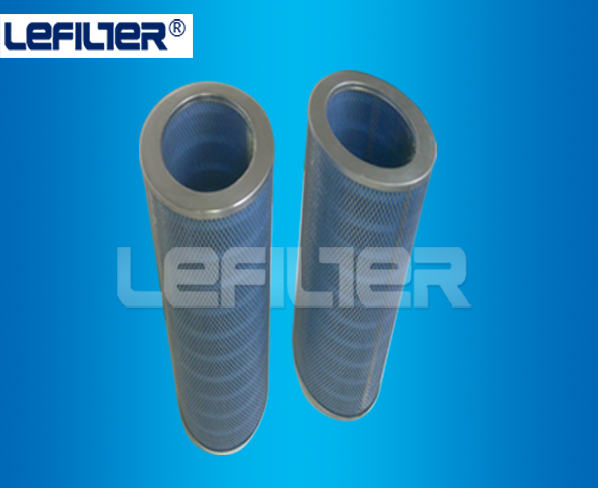

    8PP-42057-00 Replacement for Donaldson Cartridge filter

    Read 0 Reviews23 Q&As Write a Review
    8PP-42057-00 Replacement for Donaldson Cartridge filter Features Theimportedmaterialwovenpolyesterextendscartridgelife andensureshigherefficiencybyfilteringsmallparticlesonthe surfaceofthemedia. Widepleatspacingprovidesthoroughpulsecleaning

    PARAMETER

    Brand Name:
    Model Number:
    Nominal filtration rating:
    Application:
    Working temperature:
    Replacement or not:Replacement


    8PP-42057-00 Replacement  for Donaldson  Cartridge filter

    Features
    The imported material woven polyester extends cartridge life
    and ensures higher efficiency by filtering small particles on the
    surface of the media.

    Wide pleat spacing provides thorough pulse cleaning of fibrous
    and agglomerative particles.

    Start-up efficiency of 99.9% on 0.2~2μdust particles reflects highest
    industry standard.

    Flame retardant media available.

    Stainless steel construction available.
    MEDIA COMPATIBILITY DATA
    Temperature Resistance
         		 Moisture Absorption  Chemical Tolerance Abration Resistance
    180F / 82℃
         		 Maximum 14%
    @70F/ 21℃ and 65%RH
         		 Acids—Good，Oxidants—Fair
    Bases—Good，Solvents—Good    		 Good per TAPPI 476
    (Taber method）

    APPLICATIONS
    Excellent on applications with a combination of fibrous and non-fibrous dust including ceramics dust，cotton，fiber-glass，grains and many more.
    Proven solution for agglomerative dust.

    CONFIGURATIONS
    Collector Model Filter Area Pleated Height Dimentipons Material
    ft2 m2 in mm in mm
    8PP-22269-00
         		 90 8.4 2.0 50.8 13.84×26 351.5×660.4 woven polyester
    Stainless steel
