Brand Name:
Model Number:
Nominal filtration rating:
Application:
Working temperature:
Replacement or not:Replacement

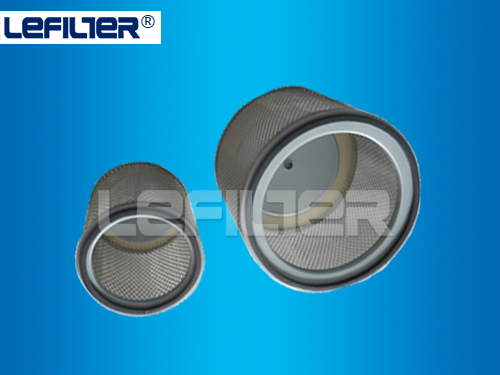

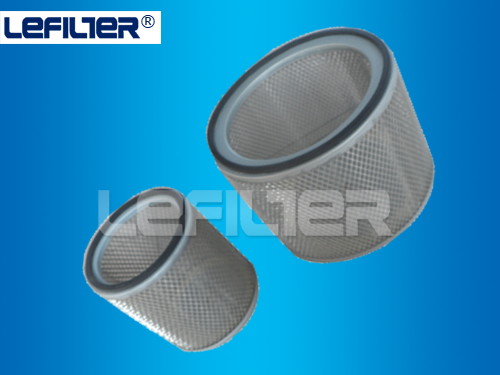

Donaldson filter Part Number:P526592-016-340
Features
The imported material woven polyester extends cartridge life and ensures higher efficiency by filtering small particles on the surface of the media.Wide pleat spacing provides thorough pulse cleaning of fibrous and agglomerative particles.Start-up efficiency of 99.9% on 0.2~2μdust particles reflects highest industry standard.Flame retardant media available. Stainless steel construction available.
MEDIA COMPATIBILITY DATA
|
Temperature Resistance
|
Moisture Absorption |
Chemical Tolerance |
Abration Resistance |
|
180F / 82°C
|
Maximum 14% @70F/ 21°C and 65%RH
|
Acids—Good,Oxidants—Fair Bases—Good,Solvents—Good |
Good per TAPPI 476 (Taber method) |
APPLICATIONS
Excellent on applications with a combination of fibrous and nonfibrous dust including ceramics dust,cotton,fiber-glass,grains and many more.Proven solution for agglomerative dust.
CONFIGURATIONS
|
Collector Model |
Filter Area |
Pleated Height |
Dimentipons |
Material |
|||
|
ft2 |
m2 |
in |
mm |
in |
mm |
||
|
P526592-016-340 |
83 |
7.7 |
2.0 |
50.8 |
12.74×26 |
323.6×660.4 |
woven polyester Stainless steel |
