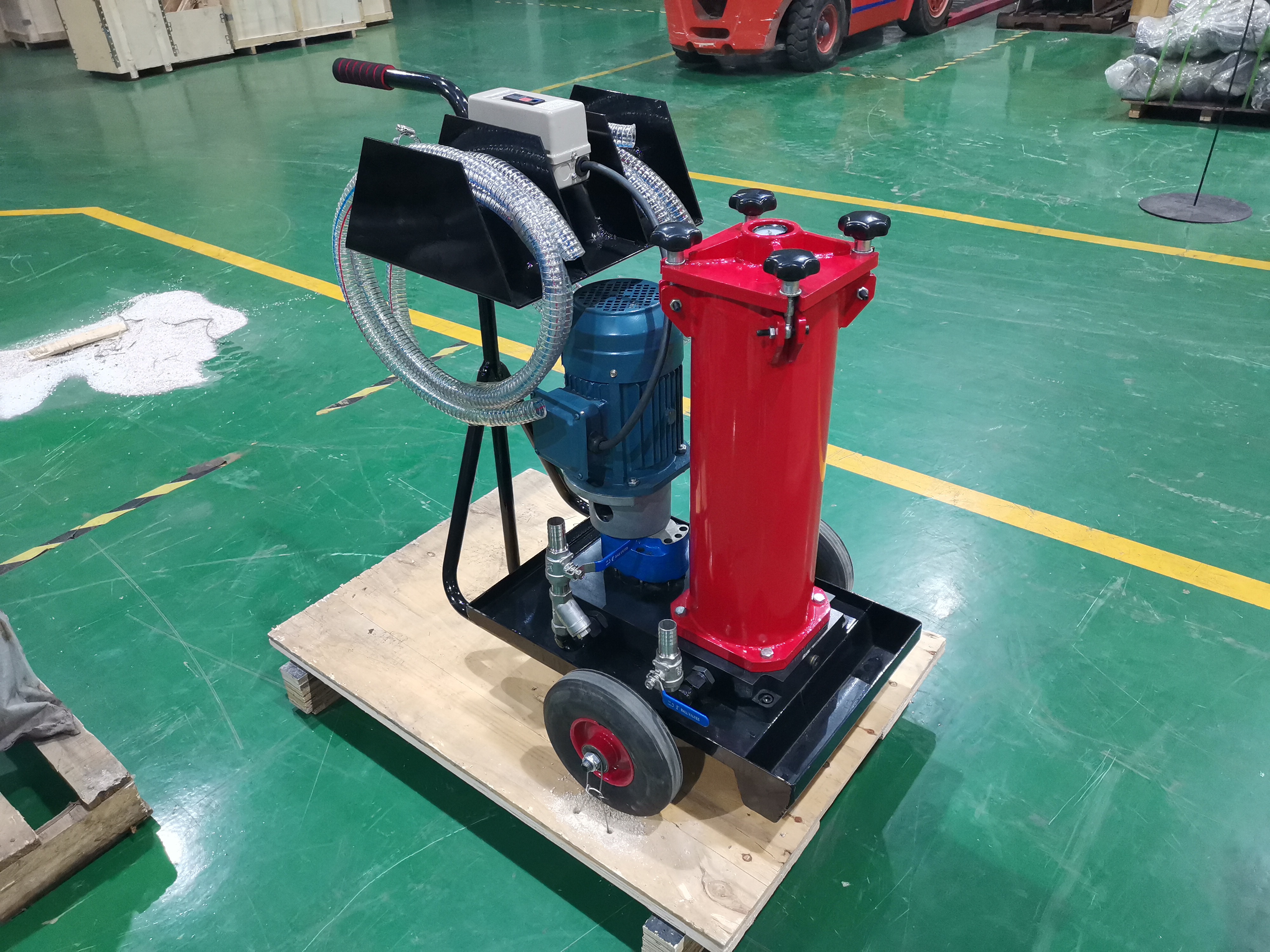

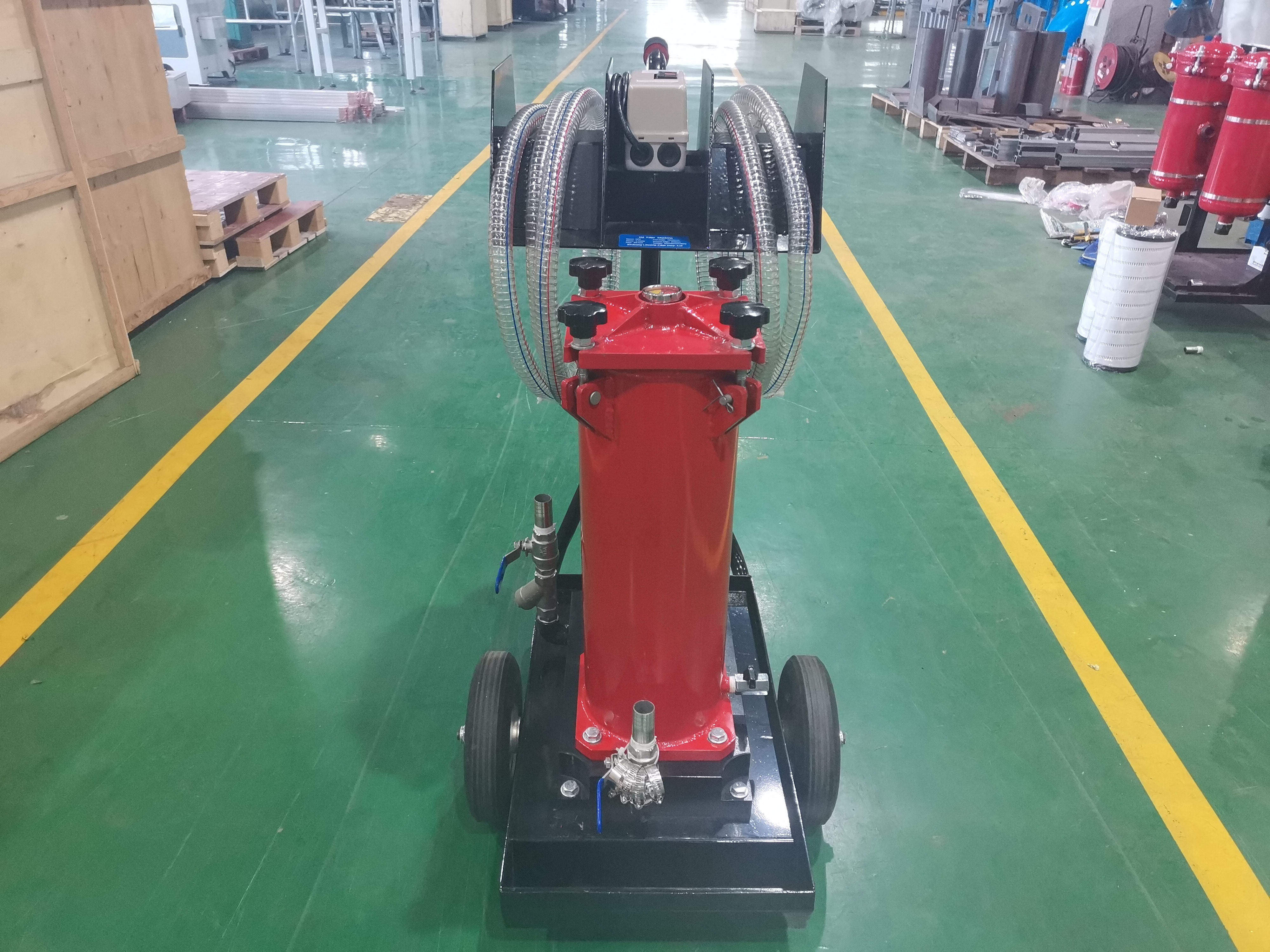

Hydac OF 5 Mobile Portable Lubricant/Hydraulic/Transformer Oil Purifier Filters Machine
Hydac Filter Repumping Unit OFU Ofu10p1n2b03b Hydraulic Oil Purifier Filters
Purifying new oil
Filling the new oil and filtrating
Purifying oil being used.
The bypass filtration in the hydraulic lubrication system .
Product Performance
1. The oil filter consists of a motor-driven gear pump, dedicating low noise, strong self-absorption capacity, smoothie running characteristics.
2. The high-pressure pipe with overflow protection device, which can effectively protect the safety of hydraulic system.
3. The use of thermal relay protection to prevent motor damage caused by motor overload.
4. The coarse filtration of suction port can protect the pump and extend the life of the main filter.
5. The precision filter chosen by different users for different precision, and can achieve the desired results.
6. Precision oil filtration housing with quick open structure, which can quickly open the cover and replace the filter without any tools.
7. Pressure gauge equipped on the panel, can show the continuous indication of the degree of contamination of the system operating conditions and filter.
Technical specifications
|
Pump type |
Vane type |
|
Max. flow rate |
30 l/min / 40 l/min |
|
Operating pressure |
4.5 bar |
|
Permitted suction pressure at suction port |
-0.4 bar to +0.6 bar |
Viscosity range
OF 5 F / OF 5 L motor-pump unit 4
OF 5 F / OF 5 L motor-pump unit 6 OF 5
CM |
15 to 450 mm²/s
15 to 350 mm²/s
15 to 200 mm²/s |
|
Permitted operating fluid |
Mineral oil (others on request) |
Fluid
temperature |
-10 to 80°C |
|
Ambient temperature |
-20 to 40°C |
|
Seals NBR |
(Option: FPM) |
|
Protection class |
IP 54 |
|
Power cable, length |
10 m |
|
Hoses, length |
3 m |
|
Hose connections |
Suction hose NW 30 with lance
Pressure hose NW 25 with lance |
|
Weight |
OF 5 F / OF 5 L ≈ 75 kg
OF 5 CM ≈ 85 kg |
