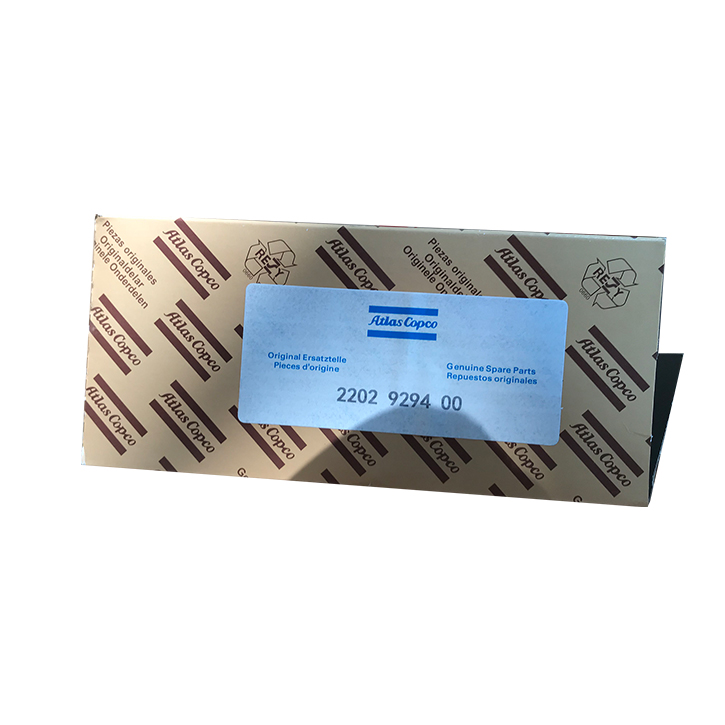

Atlas Copco Separator Replacement 2202929400

Read 0 Reviews23 Q&As Write a Review
The material of Lubrication oilfilterelement is made of superfine glass fiber of HV Company in America or wood pulp filter paper of Ahlstrom Company in Korea. Impurities such as suspended particles and oil residue in the lubrication oil can

PARAMETER

Brand Name: atlas copco
Model Number:
Nominal filtration rating:
Application:
Working temperature:
Replacement or not:Replacement

The material of Lubrication oil filter element is made of superfine glass fiber of HV Company in America or wood pulp filter paper of Ahlstrom Company in Korea. Impurities such as suspended particles and oil residue in the lubrication oil can be removed, which are in protection of the host machine.
·Filtering accuracy: 10~15μm
·Service life of the lubrication oil filter element: about 2000h
·Apply lubrication oil to the gasket during installation.
·Inferior or mismatched lubrication oil will lead to formation of carbon, which consequently results in short service life of the filter.


Engine oil filters applicable to Atlas air compressor:
Model Original P/N External diameter
mm)
Height(mm) Screw Goods No. of us
GA5/7/11C 1513033700 76 126 3/4-16UNF LFO50107126
GA11~GA160 1613610500 94 212 1-12UNF LFO50109212
GA220~GA250 1614727300 108 260 1 1/8-16UN LFO50110260
GA37+ 1622314200 84.5 173   LFO50208173
GA75+ 1622365200 84.5 346   LFO50208346

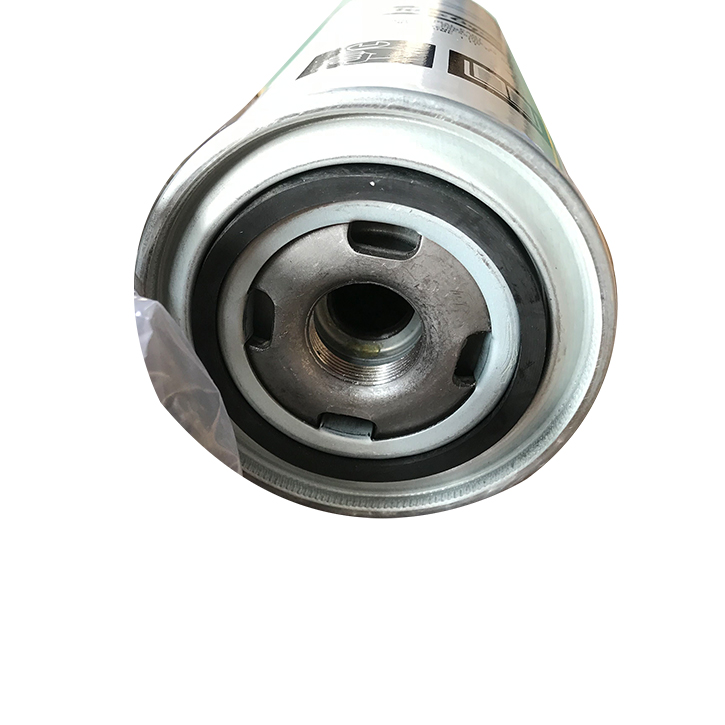

Atlas copco oil filter pictures:
