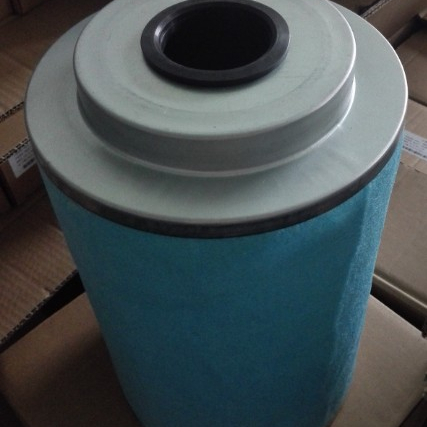

screw compressor air oil separator

Read 0 Reviews23 Q&As Write a Review
The material of Oil Mist Separator filter is made of superfine glass fiber of HV and Lydall companies in America. Oil-gas mist in the compressed air can be completely filtered through the filter element of the Oil Mist Separator.

PARAMETER

Brand Name:
Model Number:
Nominal filtration rating:
Application:
Working temperature:
Replacement or not:Replacement

The material of Oil Mist Separator filter is made of superfine glass fiber of HV and Lydall companies in America. Oil-gas mist in the compressed air can be completely filtered through the filter element of the Oil Mist Separator.


·Oil content of compressed air: 3~6PPm     Oil-gas granule of compressed air:  0.1μm

·Service life of the filter element: 3500~5200h (greatly affected by the quality of the lubricating oil and the working environment)


·Initial PSID (Pounds per Square Inch Differential): 0.02Mpa

·Lubricating oil should be controlled at prescribed position, which is commonly at 1/2~2/3 of theOil Mist Separator.

·Secondary oil return pipe and one way valve should be kept unimpeded and in the prescribed position.


·Exhaust steam pressure should be adjusted to the prescribed value.

·Make sure the air compressor works at proper temperature and the pressure valve is in good condition.



Gas-oil dissociation components applicable to Atlas screw air compressor:


Model

OriginalP/N



External diameter



(mm)

Height(mm)

Goods No. of us

GA11/15/18/22

1612386900

220

250

LF30313250

GA11/15/18/22

1613750200

240

175

LF30313175

GA30/37/45

1613243300

300

300

LF30317300

GA37+

1622314000

300

250

LF30717250

GA90/110

1614905400

596

280

LF30335280








heartReliable manufacturers
yesHigh quality products
heartExcellent service
yesFavourable prices


More details, contact Jessie:
E-mail/Skype: export01@lefilter.com
Mob/Whatsapp: 0086-17630717330
Tel: 0086-373-2618077
